Best USB-C Capture Cards for Console Streaming in 2026
The Elgato 4K X is the best USB-C capture card for most console streaming setups in 2026 because it combines HDMI 2.1, 4K144 passthrough and USB 3.2 Gen 2 connectivity. AVerMedia's Live Gamer Ultra 2.1 is the stronger fit when a high-refresh display, party-chat routing and 5.1 audio matter, while Elgato Game Capture Neo keeps the job deliberately simple for 1080p60 streams.
What a USB-C capture card changes in a console setup
A USB-C capture card sits between a console and a display, then sends video to a computer, iPad or compatible recording device. A card can pass 4K at a high refresh rate to the gaming display while recording at a lower format. It lets a creator keep a responsive picture without demanding the same bandwidth from the recording workflow.
Start with the display mode you actually use. A 4K television running at 60Hz asks for something different from a 144Hz monitor used with a current console or a PC. Then check the format you intend to publish. A polished 1080p60 stream remains a sensible target for many channels, whereas a 4K recording workflow needs more storage, more capable editing hardware and a platform that benefits from it. The host connection matters too. USB-C describes the plug, not the available throughput, so the card's stated USB standard and the computer's port must match.
For a console, turn off HDCP where the platform requires it for game capture. Keep the console connected to the card's HDMI input and the display on its HDMI output. The computer receives the USB video feed and software such as OBS can select it as a video source. Before buying, also decide how commentary and party chat will enter the recording. Some cards provide dedicated audio features; others are intentionally compact and leave microphone routing to the computer.
| Product | Best for | Price |
|---|---|---|
| Elgato 4K X | Best overall | View |
| AVerMedia Live Gamer Ultra 2.1 | High-refresh console displays | View |
| Elgato Game Capture Neo | Straightforward 1080p60 streaming | View |

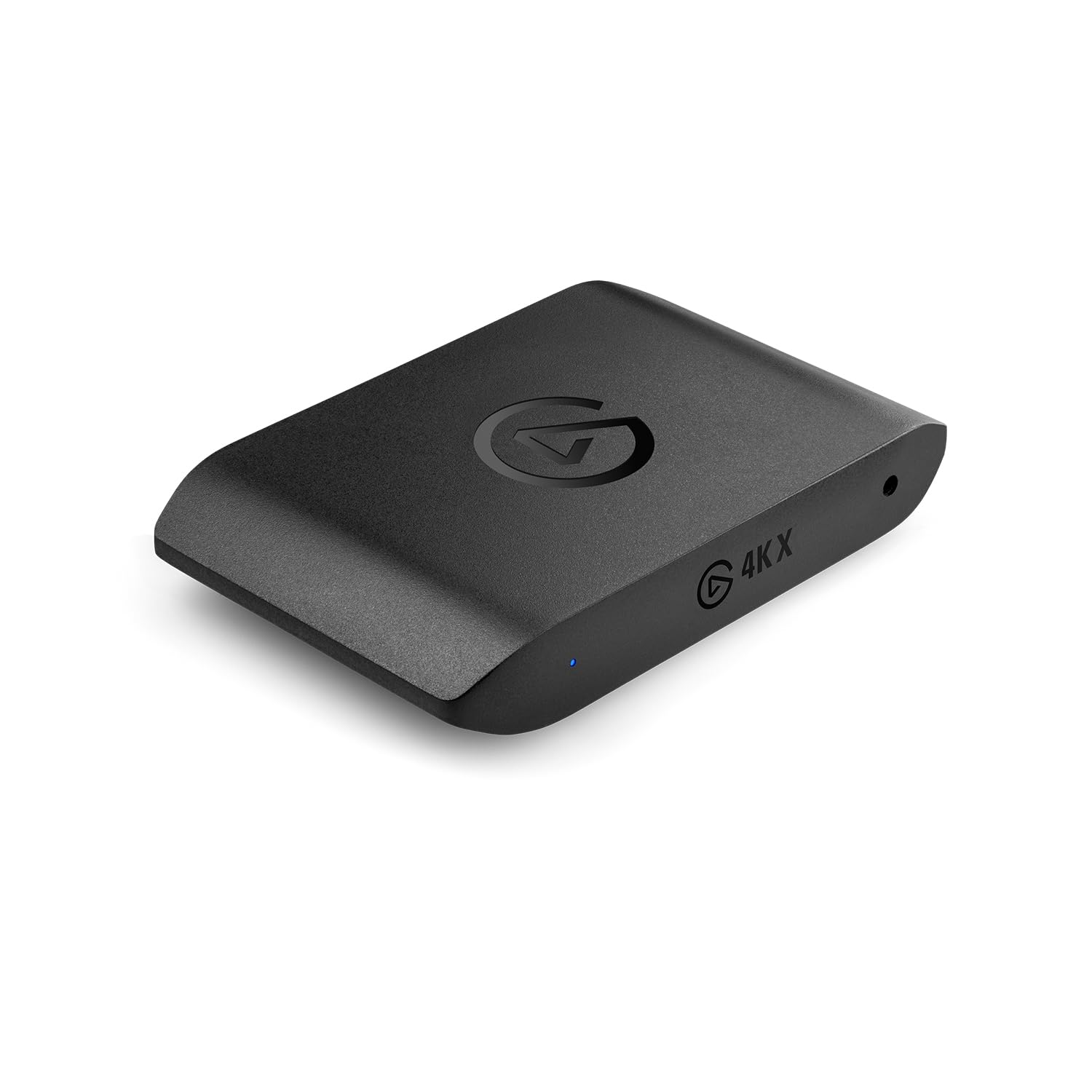

Best overall: Elgato 4K X
Elgato 4K X
The Elgato 4K X earns the overall recommendation for a creator who wants a current HDMI 2.1 capture card without moving to an internal PCIe model. Its listing specifies 4K144 ultra-low-latency passthrough, VRR passthrough and HDR10 support, so it is designed around keeping a compatible gaming display in a high-end mode. The same listing also states capture up to 1080p240 and USB 3.2 Gen 2 connectivity, a meaningful distinction for someone who records fast PC footage as well as console sessions. It works with OBS and is positioned for PS5, Xbox, Switch, PC and Mac. Choose it when display fidelity and a flexible external connection are priorities. The tradeoff is that a USB 3.2 Gen 2 path must be available on the host, and its most ambitious passthrough modes do not mean every recording workflow needs or receives the same format.
Pros
- HDMI 2.1 supports 4K144 passthrough for a compatible display
- VRR passthrough and HDR10 suit modern-console display chains
- USB 3.2 Gen 2 connection supports an external desk setup
Cons
- The host needs a suitable USB 3.2 Gen 2 connection
- High-refresh passthrough should not be confused with the selected recording format

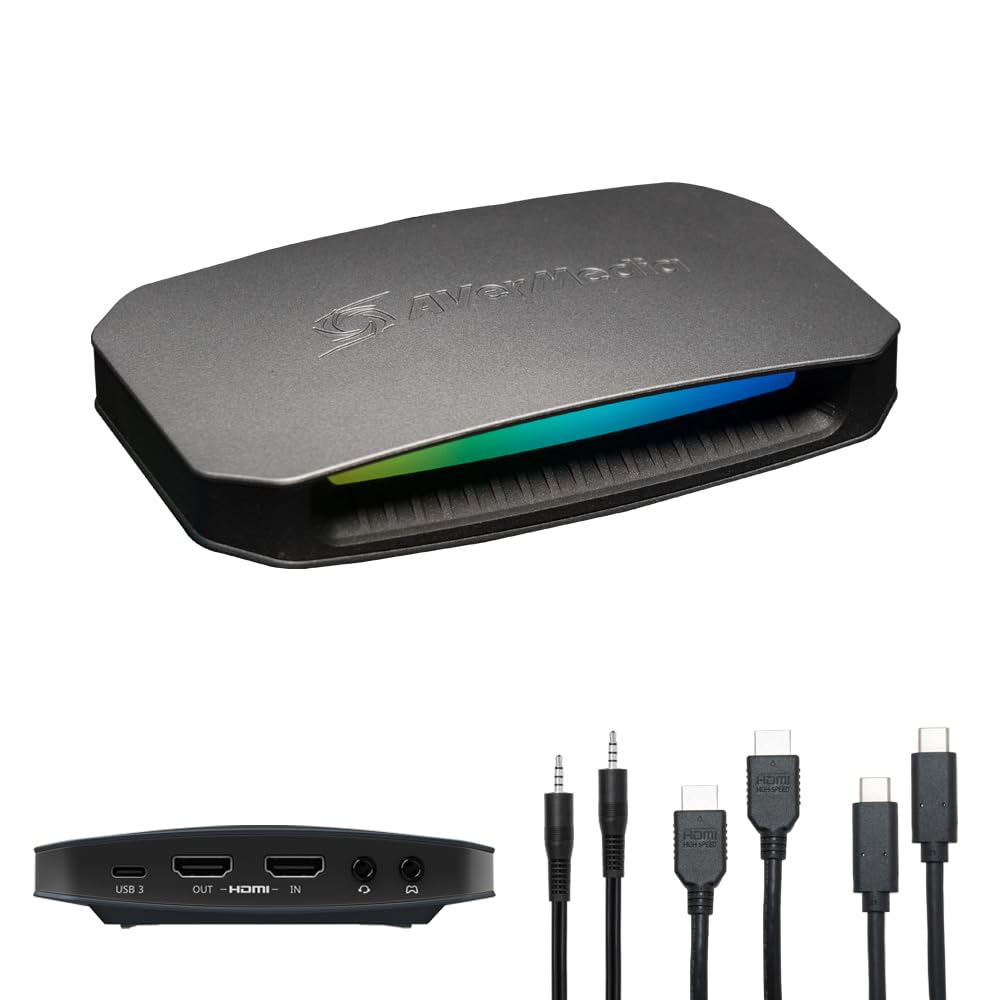

Best for high-refresh consoles: AVerMedia Live Gamer Ultra 2.1
AVerMedia Live Gamer Ultra 2.1
AVerMedia's Live Gamer Ultra 2.1 is the more specialized pick for a console station built around fast display modes and integrated audio options. The GC553G2 listing identifies HDMI 2.1 input and output, HDR10 and VRR, plus 4K144 passthrough. It also lists 1440p240 and 1080p360 passthrough, making its strengths easy to understand for a creator who alternates between a living-room 4K display and a high-refresh monitor. Capture is specified at 4K60, while the included hardware list names a USB 3.2 Gen 2 Type-C cable, HDMI 2.1 cable and a four-pole 3.5mm audio cable. Party chat, 5.1 audio and customizable RGB further distinguish it from the simpler cards here. Pick it when audio routing and very fast monitor modes are part of the plan. Its limitation is that those extras reward a deliberate desk setup rather than the lightest possible travel kit.
Pros
- 4K144, 1440p240 and 1080p360 passthrough cover several display modes
- Includes HDMI 2.1, USB-C and four-pole audio cables
- Party-chat support and 5.1 audio add routing options
Cons
- Its audio and RGB features add setup decisions for a beginner
- 4K60 capture is a separate ceiling from its higher passthrough modes

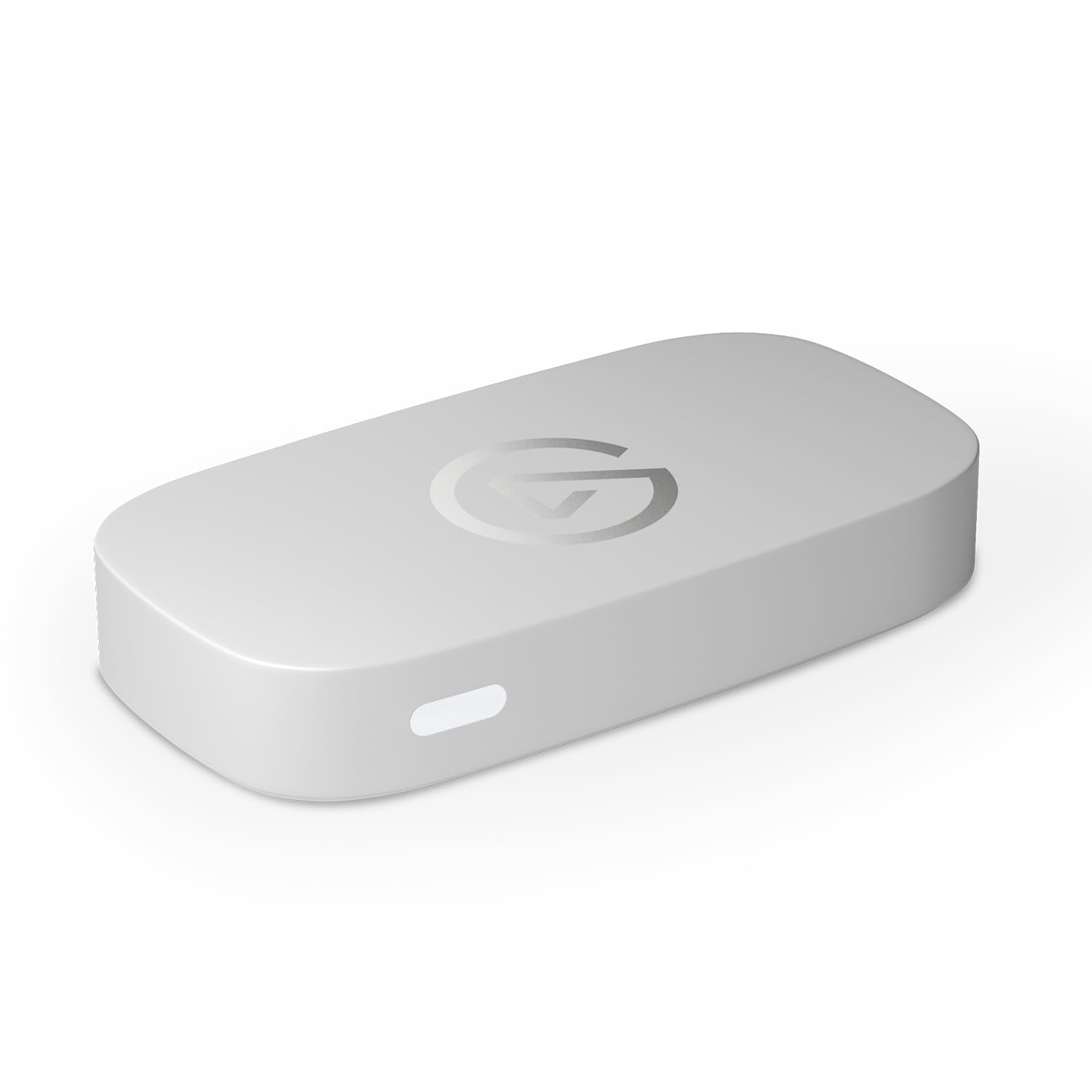

Best simple setup: Elgato Game Capture Neo
Elgato Game Capture Neo
Elgato Game Capture Neo is the approachable choice for a console creator whose finished stream or recording is 1080p60. It passes 4K60 HDR to the gaming display while capturing at 1080p60, so a console can stay connected to a 4K television without asking the creator to build a 4K production chain. Amazon lists compatibility with PlayStation, Xbox, Switch, PC, Mac and iPad, and names plug-and-play operation with Elgato software, QuickTime, OBS Studio, Discord, Microsoft Teams and Zoom. The device weighs 0.09 kg and measures 4.84 by 2.56 by 0.83 inches; the box includes a 100 cm braided USB-C to USB-A 3.0 cable. That makes it a sensible compact option for occasional streams, dorm rooms or a movable console station. The meaningful limitation is its 1080p60 capture ceiling, so it is not the right purchase for creators who specifically need 4K recording or very high-frame-rate capture.
Pros
- 4K60 HDR passthrough preserves a compatible television signal
- 1080p60 capture matches common live-stream output
- 0.09 kg body and included 100 cm USB cable suit portable setups
Cons
- Capture is limited to 1080p60 rather than 4K
- No dedicated party-chat or RGB feature set is listed
How to choose between these three capture cards
Choose the 4K X when HDMI 2.1, VRR passthrough and a USB 3.2 Gen 2 host are already part of the setup. Choose AVerMedia when party chat, 5.1 audio and fast monitor modes are central. Choose Neo when a practical 1080p60 file and a reliable basic chain matter more than 4K or 240fps capture.
Setup checks before you stream
Use certified HDMI cables appropriate to the modes you expect to pass through, and connect the capture card directly during initial setup rather than through a switch or receiver. Confirm that the console's HDCP setting is disabled for game capture where applicable. In OBS, select the card, verify video and audio independently, then make a short local recording before starting a live session. This catches mismatched frame rates, muted audio and a host port running at an unexpected speed.
FAQ
Do I need HDMI 2.1 for console streaming?
Not always. HDMI 2.1 matters when you want the capture card to preserve modes such as 4K144 or other high-refresh passthrough options on compatible equipment. If your console and display run at 4K60, a simpler card can be sufficient. Choose for the display experience you need, then separately confirm the recording format.
Can a USB-C capture card record in the same quality it passes through?
No. Passthrough and capture are separate specifications. Game Capture Neo, for example, passes 4K60 HDR while capturing 1080p60. The 4K X and Live Gamer Ultra 2.1 offer higher-end passthrough features, but the selected capture mode, host port and software settings still determine the file or stream sent to viewers.
What should I check on my computer before buying?
Check the exact USB standard, not merely the connector shape. The 4K X and Live Gamer Ultra 2.1 specify USB 3.2 Gen 2 connections, while Neo includes a USB-C to USB-A 3.0 cable. Confirm operating-system compatibility, free USB bandwidth, recording storage and that your streaming application can see the card as a video device.
